| 項目 | 說明 |
|---|---|
| 材質: MATERIAL: |
聚氯乙烯+粘性帶 PVC+VELCRO |
| 厚度: THICKNESS: |
0.35MM |
| 顏色: COLOR: |
黑+銀灰/白 BLACK+SILVER GREY/WHITE |
| 表面電阻: SURFACE RESISTANCE: |
4.0 × 10¹¹Ω |
| 功能: FUNCTIONS: |

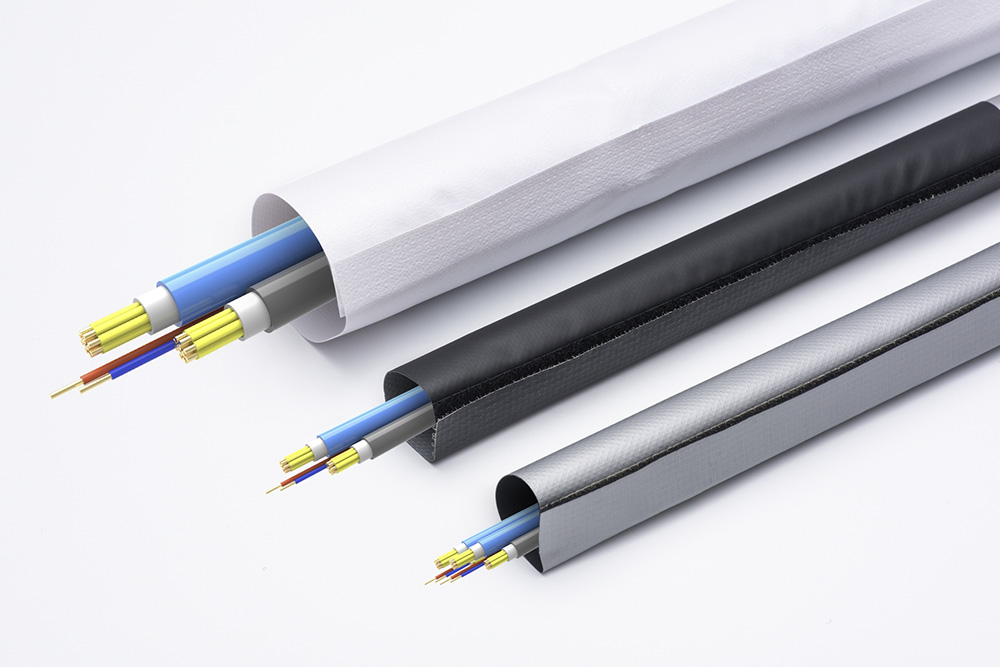

保護並美化配線,拆卸方便,可重複使用,密封性能好 PROVIDES PROTECTION AND A CLEAN APPEARANCE FOR WIRING, EASY TO REMOVE AND FULLY REUSABLE,THE SEALING PERFORMANCE. |
| 用途: USAGE: |
適用於多數電纜的保護 SUITABLE FOR PROTECTION OF MOST CABLES |
| 項目 | 橫向 TRANSVERSE |
縱向 LONGITUDINAL |
|---|---|---|
| 撕裂強度: TEAR STRENGTH: |
65.7N | 56.3N |
| 拉伸強度: TENSILE STRENGTH: |
727N | 921N |
| 伸長率: ELONGATION: |
22% | 20% |
| 型號 MODEL |
寬度(mm) WIDTH(mm) |
條徑(mm) DIAMETER(mm) |
長度 LENGTH |
包裝方式 PACKAGING |
|---|---|---|---|---|
| YM-15 | 70 | Φ15 | 50M | 卷式/紙盒 ROLL/PAPER BOX |
| YM-20 | 84 | Φ20 | ||
| YM-25 | 100 | Φ25 | ||
| YM-30 | 115 | Φ30 | ||
| YM-40 | 147 | Φ40 | ||
| YM-50 | 183 | Φ50 | ||
| YM-70 | 246 | Φ70 | ||
| YM-100 | 340 | Φ100 |
