| 項目 | 說明 |
|---|---|
| 材質: MATERIAL: |
聚氯乙烯+聚甲醛 PVC+NYLON(V0) |
| 厚度: THICKNESS: |
0.35MM |
| 顏色: COLOR: |
灰 GREY |
| 表面電阻: SURFACE RESISTANCE: |
4.0 × 10¹¹Ω |
| 功能: FUNCTIONS: |

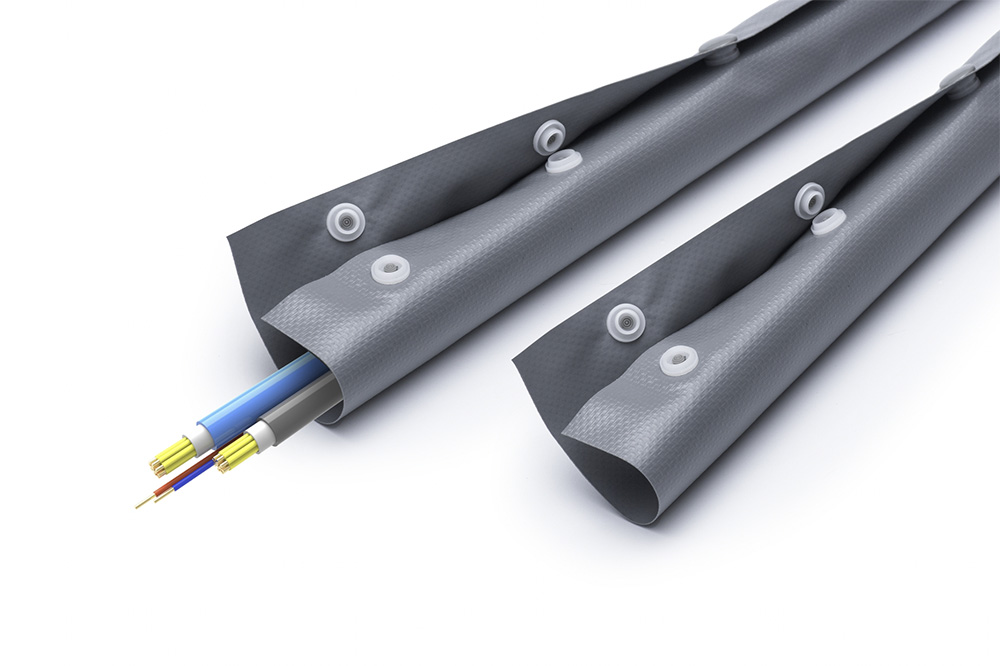

保護並美化配線,拆卸方便,可重複使用 PROVIDES PROTECTION AND A CLEAN APPEARANCE FOR WIRING, EASY TO REMOVE AND FULLY REUSABLE. |
| 用途: USAGE: |
適用於分叉電纜的保護 DESIGNED FOR THE PROTECTION OF BRANCHED CABLE ASSEMBLIES. |
| 項目 | 橫向 / TRANSVERSE | 縱向 / LONGITUDINAL |
|---|---|---|
| 撕裂強度: TEAR STRENGTH: |
65.7N | 56.3N |
| 拉伸強度: TENSILE STRENGTH: |
727N | 921N |
| 伸長率: ELONGATION: |
22% | 20% |
| 型號 MODEL |
寬度(mm) WIDTH(mm) |
條徑(mm) DIAMETER(mm) |
長度 LENGTH |
包裝方式 PACKAGING |
|---|---|---|---|---|
| YB-60 | 60 | Φ9 | 75M | 卷式 ROLL |
| YB-67 | 67 | Φ12 | ||
| YB-80 | 80 | Φ17 | ||
| YB-100 | 100 | Φ23 | ||
| YB-120 | 120 | Φ30 | ||
| YB-140 | 140 | Φ36 | ||
| YB-148 | 148 | Φ39 | ||
| YB-160 | 160 | Φ42 | ||
| YB-180 | 180 | Φ50 | ||
| YB-202 | 202 | Φ57 | ||
| YB-210 | 210 | Φ59 | ||
| YB-242 | 242 | Φ70 | ||
| YB-335 | 335 | Φ100 | ||
| YB-495 | 495 | Φ150 |
