| 項目 | 說明 |
|---|---|
| 材質: MATERIAL: |
特殊纖維+粘扣帶 SPECIAL FIBER+ADHESIVE BUCKLE |
| 厚度: THICKNESS: |
0.4MM |
| 顏色: COLOR: |
灰 GREY |
| 用途: USAGE: |

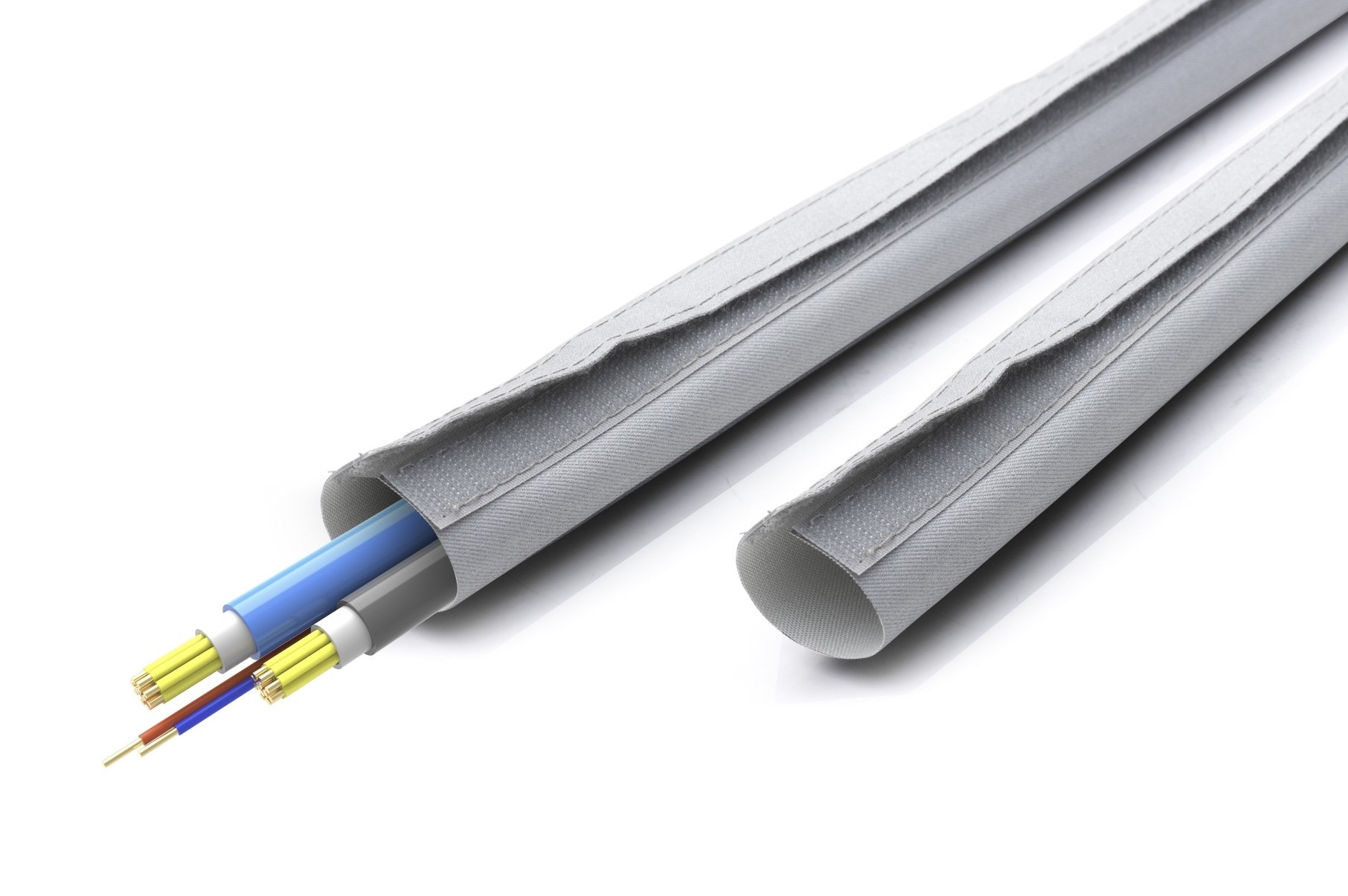

移動線束的高耐磨保護 HIGH WEAR PROTECTION FOR MOBILE WIRE HARNESSES |
| 適用溫度: AVAILABLE TEMPERATURE: |
-20°C ~ +350°C |
| 功能: FUNCTIONS : |
反射熱,高強度耐磨,耐切割,耐高溫,防飛濺性能 REFLECTIVE HEAT ,HIGH STRENGTH WEAR RESISTANCE,CUT RESISTANCE,HIGH TEMPERATURE RESISTANCE.ANTI-SPLASH PROPERTIES |
| 抗磨損性: ABRASION RESISTANCE: |
馬丁代爾耐磨儀 負荷12KPA,耐磨測試圈數>40000,無磨破 MARTINDALE WEAR TESTER LOAD 12 KPA. WEAR TEST LAPS>40000,NO WEAR |
| 型號 MODEL |
條徑(mm) DIAMETER(mm) |
長度 LENGTH |
包裝方式 PACKAGING |
|---|---|---|---|
| YWMA-15 | Φ15 | 25M | 紙盒 |
| YWMA-20 | Φ20 | ||
| YWMA-25 | Φ25 | ||
| YWMA-30 | Φ30 | ||
| YWMA-40 | Φ40 | ||
| YWMA-50 | Φ50 | ||
| YWMA-70 | Φ70 | ||
| YWMA-100 | Φ100 |
